產品簡介：本機主要供擠制軟、硬聚氯乙烯、聚乙烯等熱塑性塑料之用,它與相應的輔機(包括成型機頭)配合,可加工多種塑料制品,如膜、管、棒、板、絲、帶電纜絕緣層及中空制品等,亦可用于造粒。
SJ SERIES SINGLE SCREW PLASTIC EXTRUDER

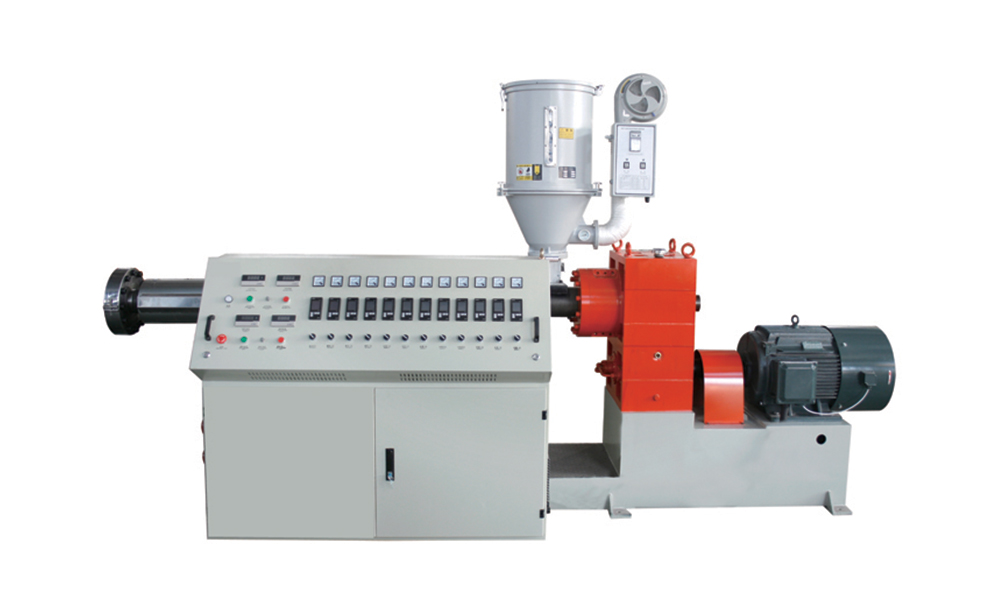

SJ系列單螺桿擠出機
用途
本機主要供擠制軟、硬聚氯乙烯、聚乙烯等熱塑性塑料之用,它與相應的輔機(包括成型機頭)配合,可加工多種塑料制品,如膜、管、棒、板、絲、帶電纜絕緣層及中空制品等,亦可用于造粒。
Application
The machine is mainly used in extruding soft and hard thermoplastics, such as polyviyl chloride(PvC), polyethylene and others. It is used with relevant auxiliary machine(including shaping machine head)to produce several kinds of plastic products, for example: film, pipe, rod, plate, thread, cable insulating layer, hollow product, It is also used for prilling.
|
產品名稱 Product Name |
螺桿直徑 Screw diameter |
長徑比 L/D |
電機功率 Motor Power |
輸出力矩 Output torque |
螺桿轉速 Screw speed |
生產能力 Max output |
| SJ25/25 | 25 | 25:1 | 1.5 | 175 | 100 | 3 |
| SJ30/25 | 30 | 25:1 | 4 | 410 | 125 | 10 |
| SJ45/25 | 45 | 25:1 | 7.5 | 580 | 100 | 20 |
| SJ45/30 | 45 | 30:1 | 11 | 1000 | 145 | 40 |
| SJ65/25 | 65 | 25:1 | 22 | 1500 | 100 | 60 |
| SJ65/30 | 65 | 30:1 | 30 | 3600 | 105 | 80 |
| SJ75/33 | 75 | 32:1 | 90 | 7200 | 120 | 350 |
| SJ90/25 | 90 | 25:1 | 55 | 4400 | 120 | 150 |
| SJ90/30 | 90 | 30:1 | 75 | 9200 | 94 | 210 |
| SJ90/33 | 90 | 32:1 | 160 | 13000 | 120 | 500 |
| SJ120/25 | 120 | 25:1 | 90 | 9200 | 94 | 350 |
| SJ120/30 | 120 | 30:1 | 110 | 16000 | 94 | 350 |
| SJ120/38 | 120 | 38:1 | 185 | 20000 | 90 | 450 |
| SJ150/30 | 150 | 30:1 | 132 | 35000 | 50 | 350 |
